inVue Surface Ball Return
inVue Surface Ball Return
Engineered with simplified mechanics, safety-focused features, and seamless QubicaAMF ecosystem integration
Invue Surface Ball Return ensures easy operation, maximized lane availability, and a fresh visual spectacle that excites guests.
More than a ball return, inVue is a design statement that redefines the bowling environment, proving that functional equipment can also be an unforgettable part of the entertainment experience.
Dimensions
Operations

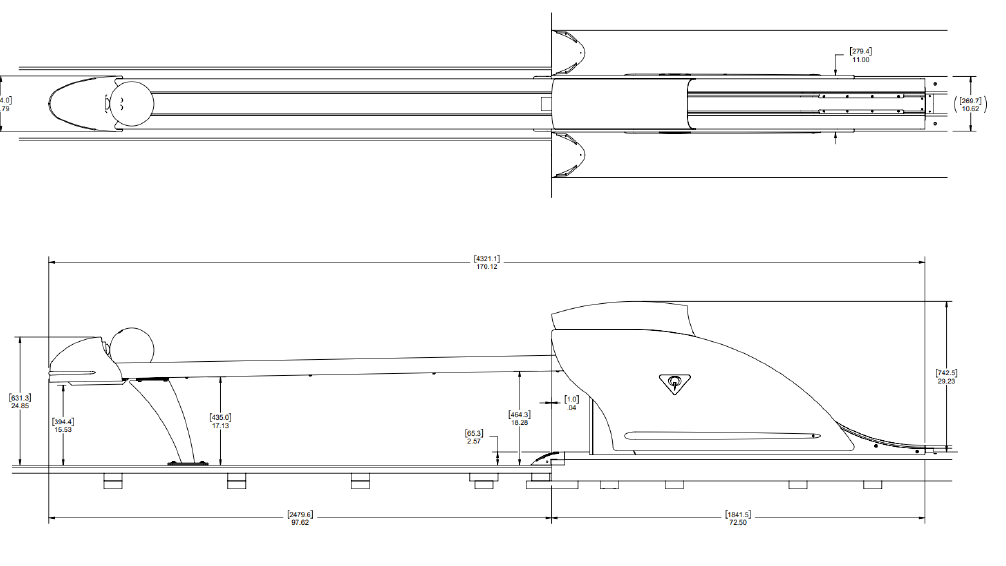

InVue Surface Ball Return Overall Dimensions
Overall Length: 170 1/4 in (4322 mm)
Overall Height: 29 1/4 in (743 mm)
Approach Length: 97 5/8 in (2480 mm)
Cover Board Length: 72 1/2 in (1842 mm)
End Stop Width: 10 7/8 in (275 mm)
Riser Width: 10 5/8 in (270 mm)
Side Plate Width: 11 in (280 mm)
Rack Clearance (Minimum Height): 17 1/8 in (435 mm)
